Radio telemetry devices for
transmiting digital and analog signals






    Radio telemetry devices are used to transmit digital and analog signals directly over longer distances. Designed with a long-range transceiver for free or licensed radio channels, the device enables easy implementation of solutions for reliable long-distance process I/O transmission or within an industrial plant. It can transmit analog and digital signals, one-on-one or one-on-many devices.






Basic features of radio modules (depending on model):
       Licensed radio channels 360-512 MHz, free 869 MHz, Wi-Fi 2,4 GHz, Ethernet.
       Transmitting power 10 mW - 10 W.
       0-16 digital inputs, 1-16 digital outputs, 0-6 analog inputs, 0-8 analog outputs.
       1 x RS-232 (DB-9 or RJ-45), 1 x RS-485 (2-pin terminal block), 1 x 10/100BaseT (RJ-45).
       Radio channel width: 6,25/12,5/25 kHz (licenced), 250 kHz (free), 20 MHz (Wi-Fi 2,4 GHz).
       Radio data transfer speed up to 140 kbit/s, for Wi-Fi up to 54 Mbit/s.
       Possibility of transmitting signals up to 100 km.
       Possibility to expand with additional inputs and outputs using ELPRO 115S expansion module.
       Aluminium or plastic heat proof housing (IP20).
       Power supply voltage 10,8 - 30 VDC, possibility of a battery power or direct connection to a photovoltaic cell.
       Temperature range from -40 to +70 °C.

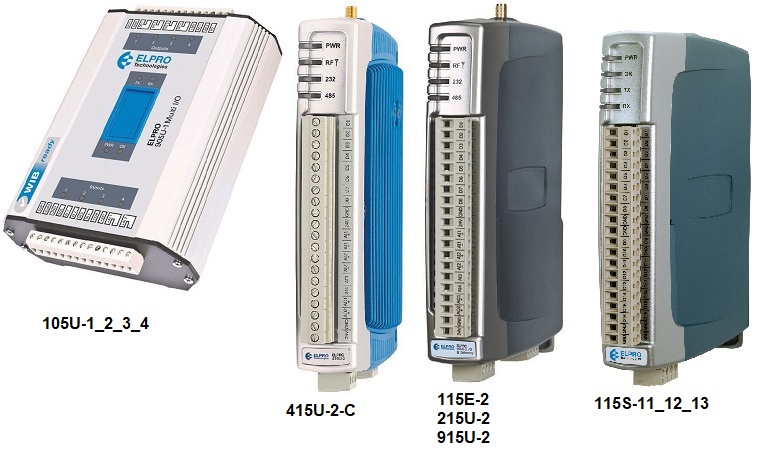

105U-1,2,3,4 data sheet (.pdf, eng, 1,1 MB)  105U-L data sheet (.pdf, eng, 947 kB)  415U-2-C data sheet (.pdf, eng, 7,35 MB)
915U-2 data sheet (.pdf, eng, 6,88 MB)  215U-2 data sheet (.pdf, eng, 3,08 MB)  115E-2 data sheet (.pdf, eng, 2,27 MB)
115S-11,12,12 data sheet (.pdf, eng, 500 kB)
