Lynx 3000 - compact and
cybersecure Ethernet switches

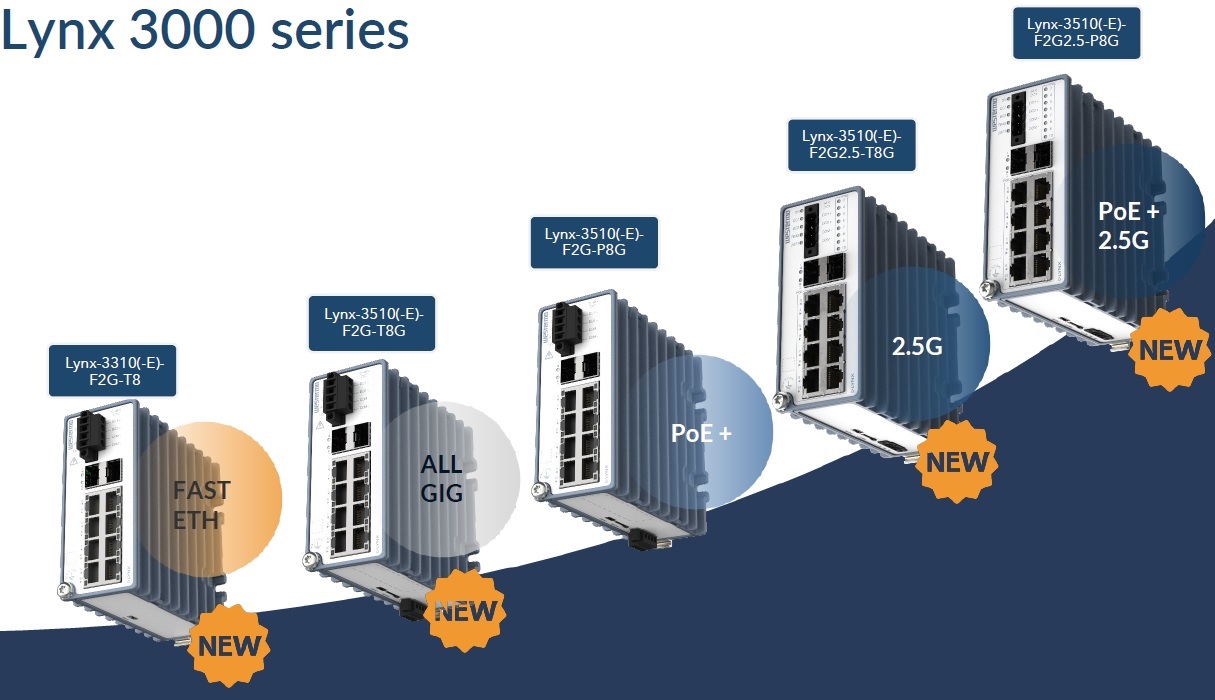

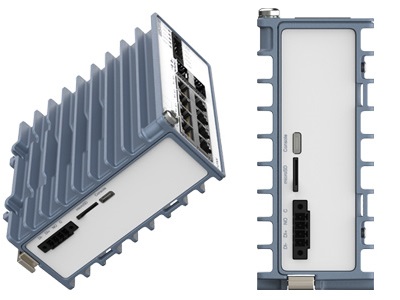

Introducing the new Lynx 3000 series designed to provide outstanding levels of performance, reliability and security, with gigabit speeds and advanced functionality to support the requirements of both current and future networks. An extensive suite of cybersecurity tools is available to reduce risk and increase cyber resilience. The Lynx 3000 series is designed for heavy industry, marine and rail trackside applications. The switches are tested to meet a broad range of industry standards for use in the harshest industrial environments, including those with high electromagnetic interference, extreme temperatures, humidity and vibration.

Technical characteristics Lynx 3000 series:
   Ethernet ports: 8 x 10/100BaseT(X), RJ-45 or 8 x 10/100/1000BaseT(X), RJ-45 or
     8 x 10/100/1000BaseT(X) 802.3at/af (PoE+/PoE), RJ45.    Optical ports: 2 x 1 Gbit/s, SFP ili 2 x 2,5 Gbit/s, SFP.
   Digital I/O.    Secure Digital 2.0 Micro SD memory card (configuration backup).
   USB-C console port (emulate serial port, 115200 bps).    Quad Core 64-bit CPU.
   MTBF (Mean time between failures) MIL-HDBK-217F: (non-PoE models) from 100 (879.000 h) to 111 years (974.000 h);
     (PoE models) 66,5 years (583.000 h).    Built-in cybersecurity.    Galvanic insulation for all ports and power supply.
   Approvals: EN 50121-4/IEC 62236-4 (trackside); DNV GL (Ships and offshore units);
     NEMA TS2 (traffic, non-PoE models).    Compliant with IEC 62443-4-2.
   Hardware support for secure boot.    IP40, full metal housing.
   Power supply: redundant; (non-PoE models) 9,6 - 60 VDC; (PoE models) 802.3at (PoE+): 53 - 57 VDC,
     802.3af: 48 - 57 VDC, no PoE: 12 - 57 VDC.    WeOS 5 L2 (switch) and L3 (router) variants.
   DIN-rail mount (Place, Adjust, Fix functionality), panel and wall mount (integrated, no adapter).
   Operating temperature: -40 to +70 °C, CT variant -10 to +70 °C.    Warranty 5 years.






Lynx 3000 data sheet (.pdf, en, 1,72 MB)  WeOS 5 data sheet (.pdf, en, 421 kB)
